DSISTEM DOO - DEVICES FOR DATA TRANSMISION

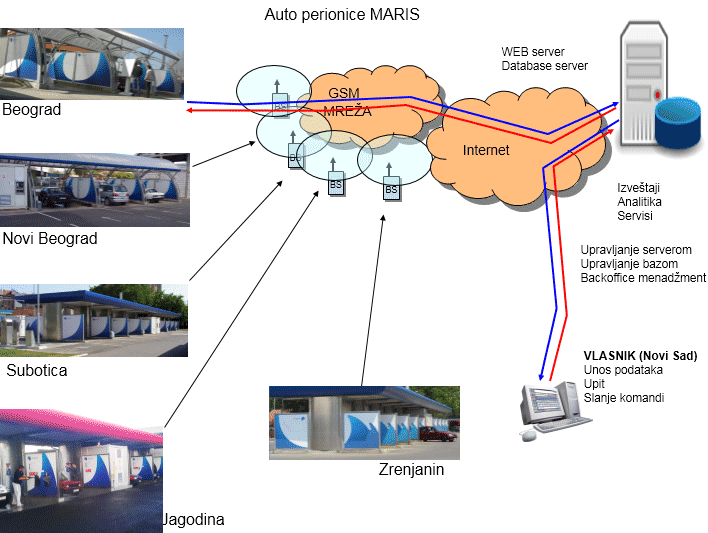

System design:

Module unit for collecting data (analog and digital) is in the target device. Module sends data over GSM in full duplex mode in real time. Application on the server collects and store data in the data base. These data are available over the Web application which is accessible over internet. User have full control of data.

If necessary, the commands can be sent to the particular module unit and to the target device. Delays depends of the GSM network and it is about 1 or 2 seconds. Number of module units have no limits. Consumption od module is about 0,1A.

Application:

Remote control and On-line sales monitoring of Vending machines or other similar machines that have coin/bill acceptors.

Daily, weekly, monthly, reports of troubles (errors, bill stacks,,, etc) for each machine.

Payment over GSM, e-payment is possible to upgrade.

Preconditions:

Power supply 220V or UPS.

Good GSM signal strength of chosen provider.

Coin or bill acceptor for follow up the money flow.

Web software and Application for supervising data.

primer

Example: vending machines

The module is connected on the vending machine number 12345 and monitors the data : money that is inserted, malfunctioning of the machine, bill stack, power supply. All data are available on the server with small delay (less the 2 sec) so the owner of the machines always have the correct and update status of all machines. If any error occurs the owner is informed immediately over the web site or by some other way (email, SMS, phone call)..
